Product Description

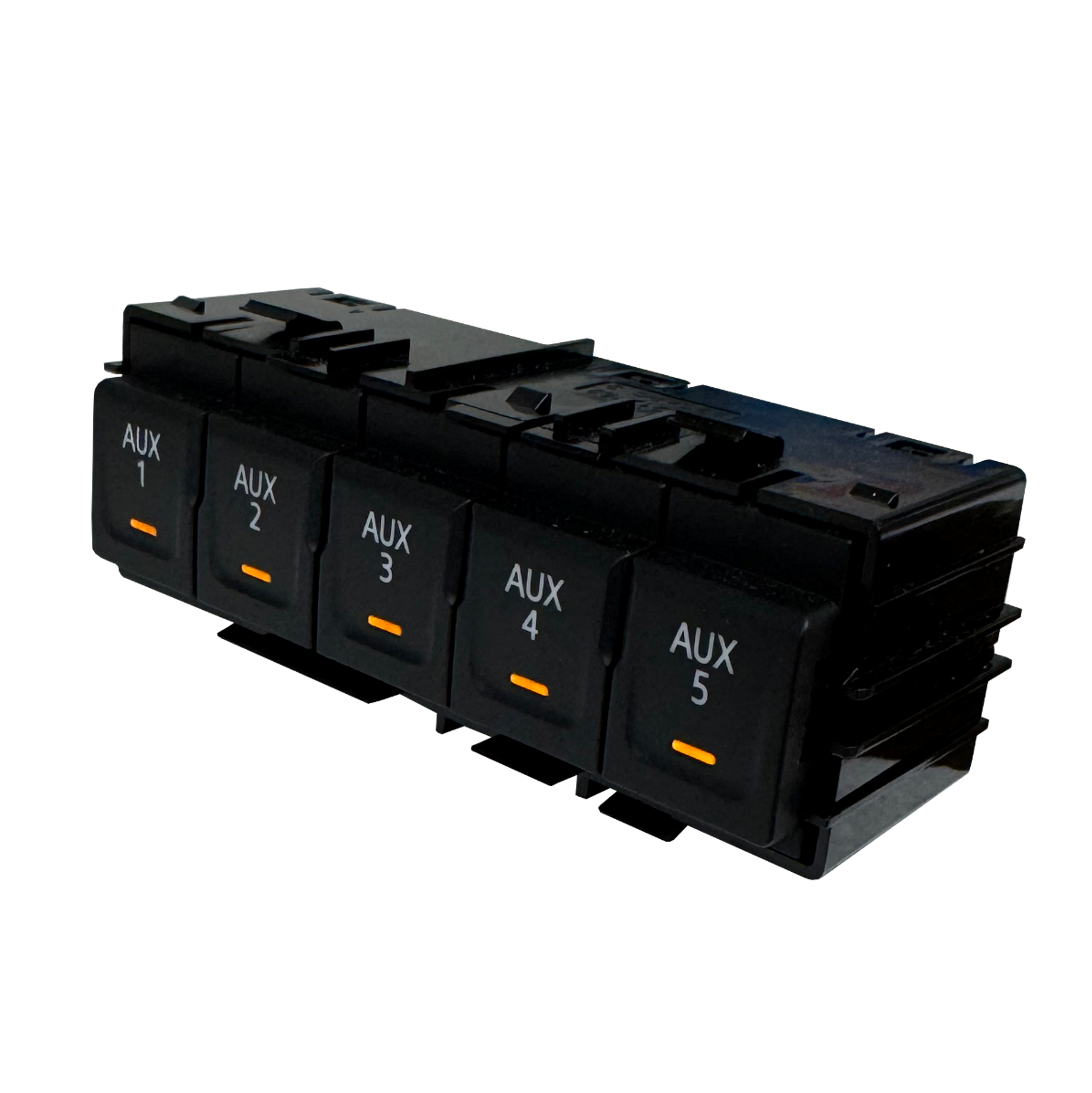

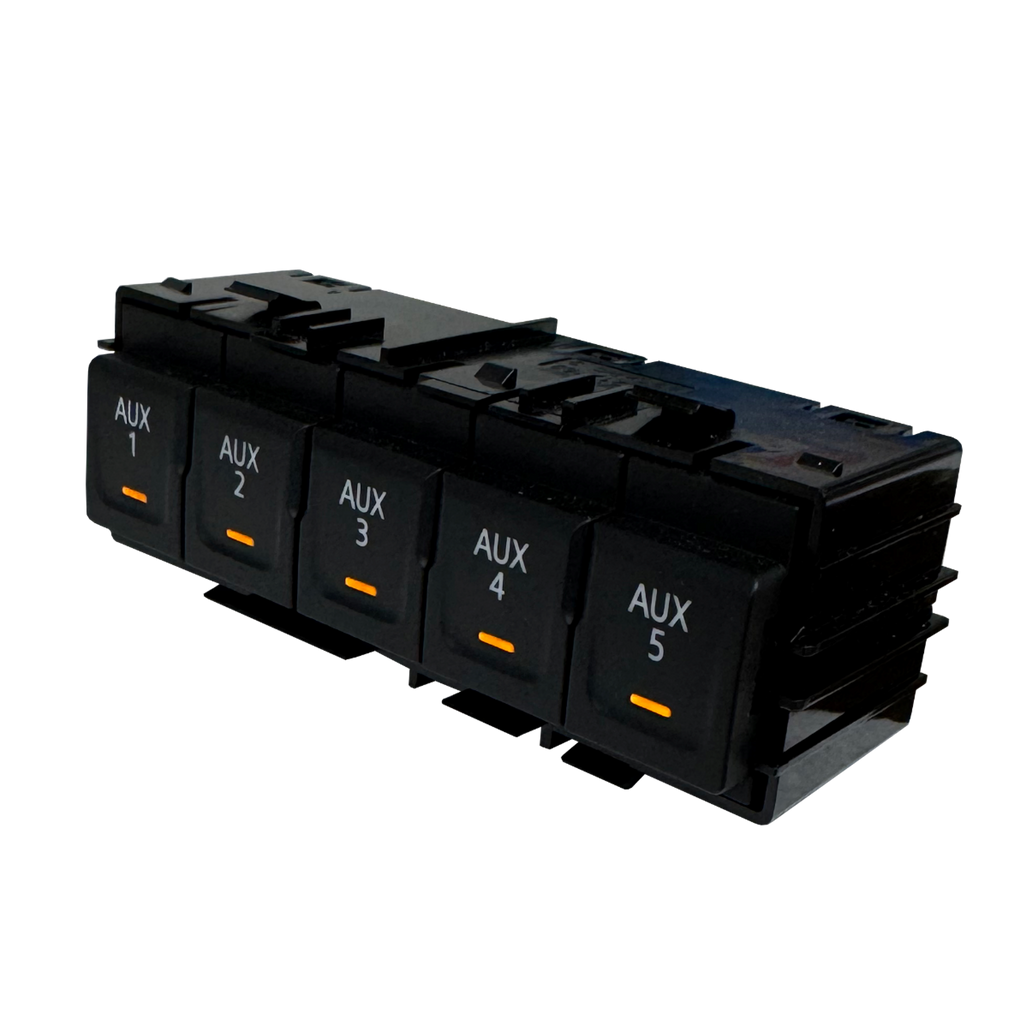

  • 5 Active High outputs
  • Toggle switches for each output
  • Yellow indicator light
  • White Backlight
  • Installs into GM trim

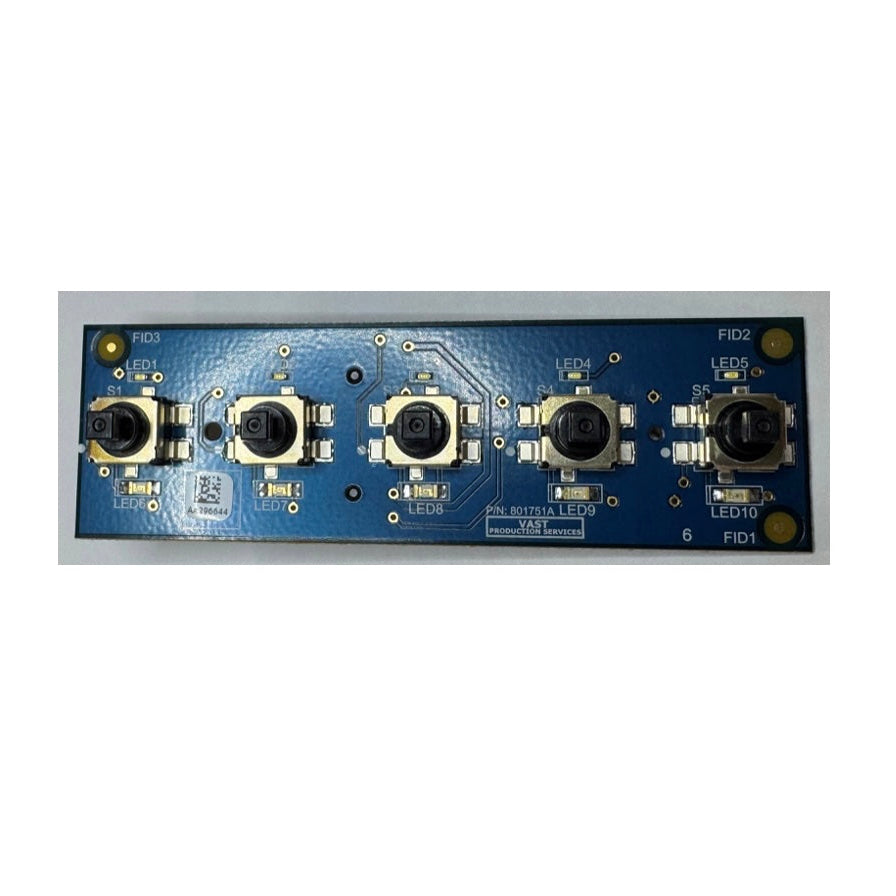

  • Would require PCB Swap from GM PN 85080553

Designed and Assembled in USA
Technical Specifications
  • Designed to be a PCB Drop-in with GM PN 85080553, 5-panel Aux Switch
  • Compatible with GM PNs 85091037, 84487354 and 84487355 trims.
  • Has 5 toggle Active High switches
  • Backlighting follows vehicle dimming
  • Over-voltage protection
  • Reverse battery protection
Design and Validation Activities

Designed with Compliance to GM Specs

  • GMW3172 – Environmental
  • GMW3097 – EMC
  • SW Suite

Testing Conducted

  • GMW 3172: 8.2.1 Jump Start
  • GMW 3172: 8.2.2 Reverse Polarity
  • GMW 3172: 8.2.3 Over Voltage
  • GMW 3172: 9.2.1 Parasitic Current
  • GMW 3172: 9.2.2 Power Supply Interruptions
  • GMW 3172: 9.2.3 Battery Voltage Dropout
  • GMW 3172: 9.2.6 Intermittent Short Circuit to Battery and to Ground
  • GMW 3172: 9.2.7 Continuous Short Circuit to Battery and to Ground
  • GMW 3172: 9.2.9 Open Circuit – Single Line Interruption
  • GMW 3172: Ground / Power Offset
  • GMW 3172: 9.2.17 Crank Pulse Capability
  • ISO7637: Load Dump
  • GMW3097: 3.6.2 Remote I/O (ESD)
  • GMW3097: 3.6.3 Handling of Devices (ESD)
  • Compatibility with UVM – Bench and Vehicle Testing
