SwitchBlade
$150.00
Sale price
$150.00
Regular price
Product Description

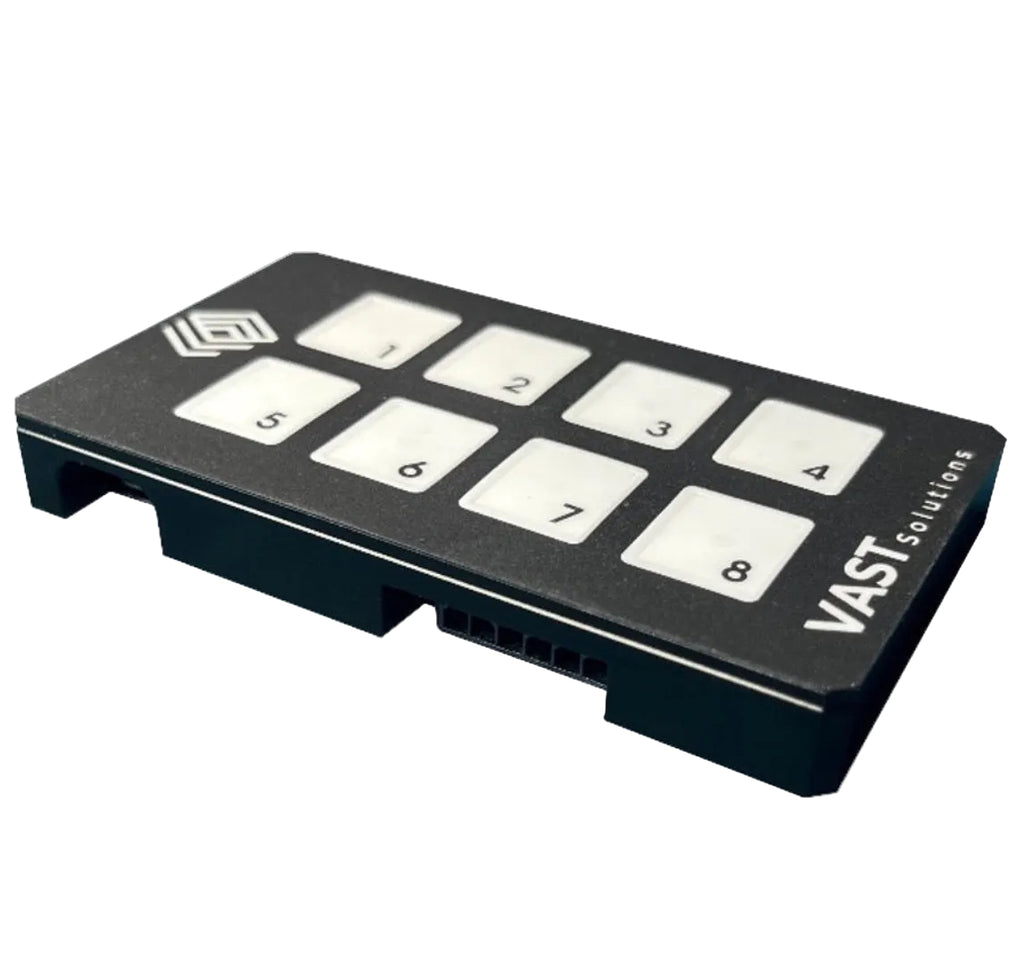

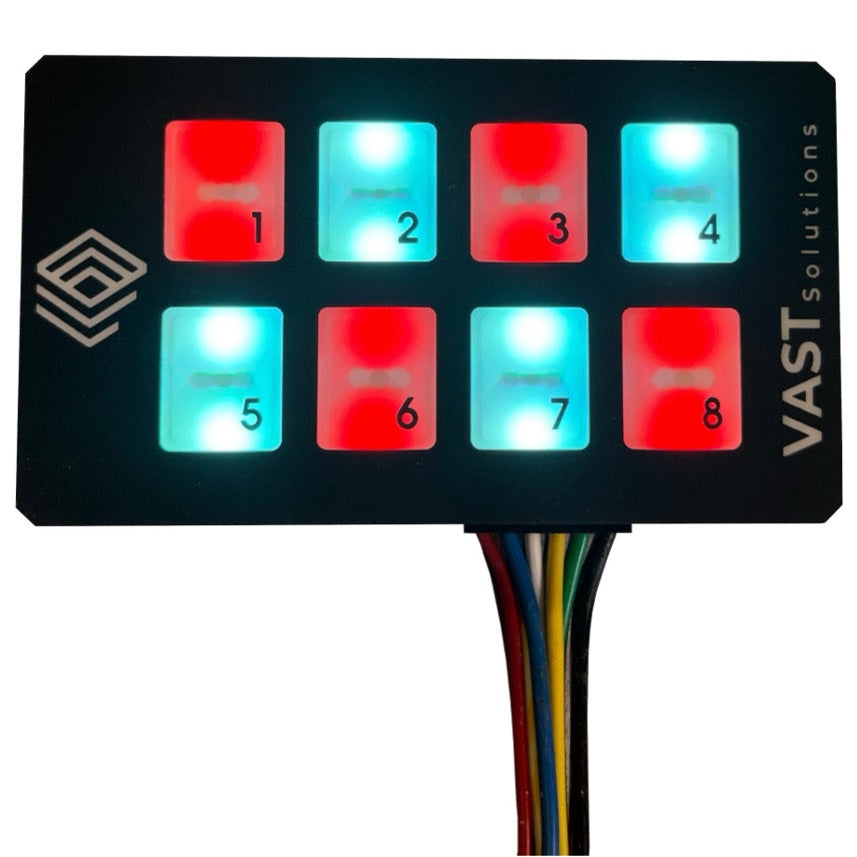

- 2x4 array of push button switches that act as a software configurable input controller to the GM UVM module.
- Controls 8 different inputs to the UVM, and can select 3 different output states for the UVM (Active low, Neutral, and Active High).
- Dimensions – 3.5 x 2.0 x 0.44 inch
- Black anodized aluminum housing
- 8x solid-state actively regulated outputs
- Follows vehicle backlight dimming
- UVM / Vehicle communication capable
- Included in package is a harness splitter and complete wire harness
Technical Specifications
- Operating Temperature: -40C – 85C
- Operating Input voltage: 8V-24V
- Over-voltage protection
- Reverse Battery protection
- Low sleep current (<100uA)
- Software upgradable (via application flash through config GUI)
- Software Configurable via provided GUI/USB-C connection
Design and Validation Activities
Designed with Compliance to GM Specs
- GMW3172 – Environmental
- GMW3097 – EMC
- SW Suite
Testing Conducted
- GMW 3172: 8.2.1 Jump Start
- GMW 3172: 8.2.2 Reverse Polarity
- GMW 3172: 8.2.3 Over Voltage
- GMW 3172: 9.2.1 Parasitic Current
- GMW 3172: 9.2.2 Power Supply Interruptions
- GMW 3172: 9.2.3 Battery Voltage Dropout
- GMW 3172: 9.2.6 Intermittent Short Circuit to Battery and to Ground
- GMW 3172: 9.2.7 Continuous Short Circuit to Battery and to Ground
- GMW 3172: 9.2.9 Open Circuit – Single Line Interruption
- GMW 3172: Ground / Power Offset
- GMW 3172: 9.2.17 Crank Pulse Capability
- ISO7637: Load Dump
- GMW3097: 3.6.2 Remote I/O (ESD)
- GMW3097: 3.6.3 Handling of Devices (ESD)
- Compatibility with UVM – Bench and Vehicle Testing
